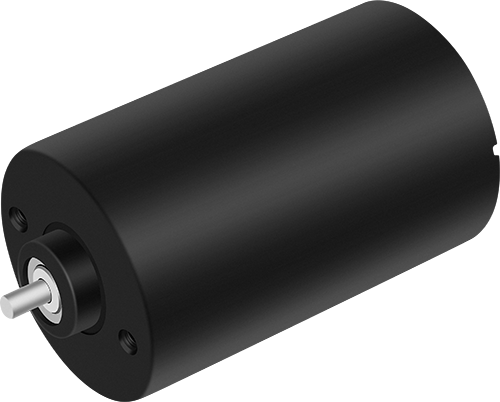

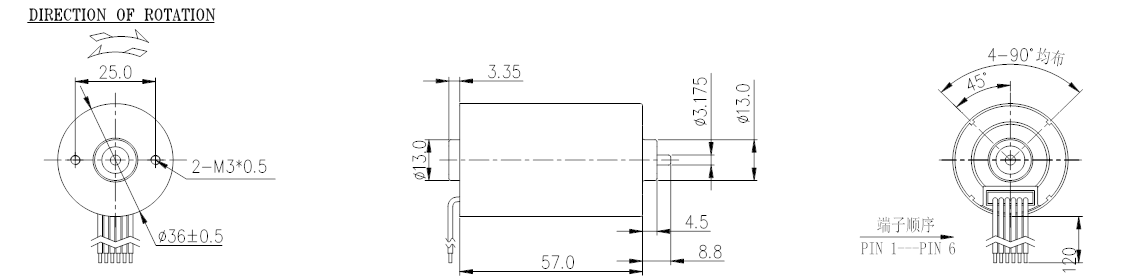

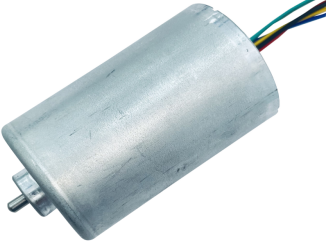

HBL3657系列
典型用途(Typical Applications)
1.电动螺丝刀(Electric screwdriver)
2.医疗设备(Medical Equipment)
型号 MODEL | 电压 VOLTAGE | 无负载 NO LOAD | 典型负载特性 TYPICALLOADCHARACTEISTICS | 堵转 STALL | ||||||||
使用范围 OPERATING RANGE | 标称值 NOMINAL | 转速 SPEED | 电流 CURRENT | 转速 SPEED | 电流 CURRENT | 力矩 TORQUE | 功率 OUTPUT | 力矩 TORQUE | 电流 CURRENT | |||
V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A | ||
HBL3657L-01A | 9~16.0 | 12.0 | 4200 | 0.18 | 3400 | 0.9 | 200 | 19.6 | 9.4 | 1834 | 179.8 | 7.0 |
HBL3657L-02A | 12~30.0 | 24.0 | 8600 | 0.28 | 7300 | 1.6 | 390 | 38.2 | 31.3 | 3086 | 302.5 | 12.0 |
